Modern structural engineering constantly battles gravity and environmental decay. Every project demands materials minimizing dead weight without compromising load-bearing capacity or overall safety. Heavy metals often burden infrastructure by adding unnecessary mass. They also require endless corrosion maintenance and complex structural foundations. By replacing traditional aluminum or steel, engineers increasingly specify fibreglass hollow tubes alongside solid FRP rods to solve these complex engineering weight challenges.
This article provides a comprehensive technical and commercial evaluation framework. We guide engineers and procurement teams through assessing hollow fiberglass materials for advanced structural applications. You will learn how to optimize material performance effectively. You will also discover how to ensure compliance and longevity across highly demanding operational environments.
Optimal Strength-to-Weight: Hollow profiles maximize the area moment of inertia, providing superior bending stiffness per kilogram compared to solid alternatives.
Harsh Environment Durability: Inherently non-corrosive and non-conductive, drastically reducing lifecycle maintenance costs in chemical, marine, and electrical applications.
Manufacturing Precision: Pultruded manufacturing processes ensure consistent multidirectional strength and strict dimensional tolerances.
Application Specificity: Success depends on matching the correct resin matrix (e.g., polyester vs. vinyl ester) and glass reinforcement architecture to specific load and environmental criteria.
Understanding the mechanics of bending explains exactly why hollow structures excel in construction. In structural engineering, we evaluate the "Moment of Inertia" to determine bending stiffness. When a beam experiences bending forces, most structural stress concentrates heavily at the extreme outer surfaces. The central core of a solid profile contributes minimally to overall structural stiffness. However, this solid center adds significant dead weight to the assembly.

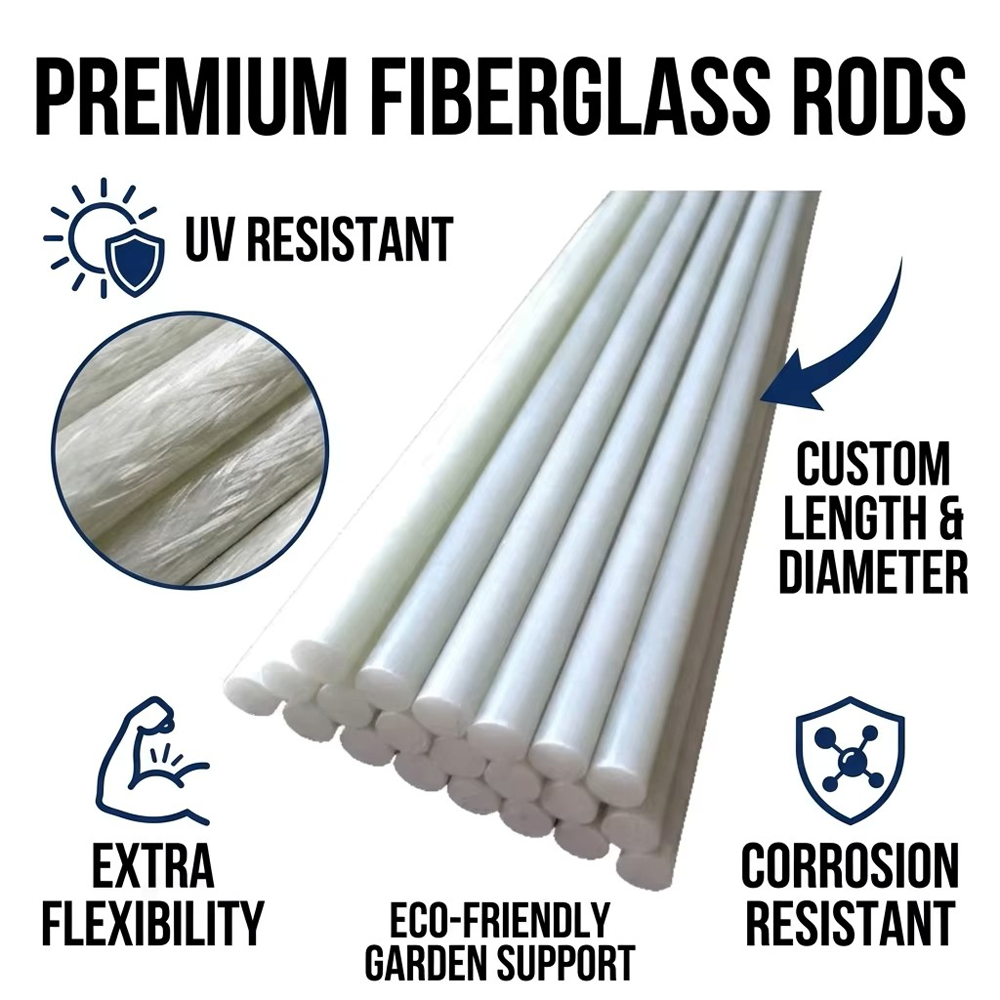

This physical reality strictly dictates material selection for unsupported spans. A hollow fiberglass tube provides a vastly superior rigidity-to-weight ratio for structural frameworks. It places the high-strength glass fibers exactly where bending stresses peak. Conversely, solid FRP rods serve entirely different engineering needs. You should reserve solid rods for specific high-tensile applications. Engineers primarily specify them for internal concrete reinforcement, doweling, or localized high-crush load areas where sheer density matters.
Choosing hollow profiles yields cascading weight reduction outcomes across your entire project. By systematically cutting dead load, you unlock several major operational benefits:
Easier manual handling on-site drastically reduces the need for expensive heavy lifting equipment.
Lowered shipping and logistics costs streamline supply chain budgets, especially for remote builds.
Reduced structural requirements for secondary support frameworks save underlying foundation materials.
Metals dominated structural construction for centuries. Now, fiberglass composites challenge this legacy through superior environmental resilience and specialized physical traits. Corrosion and chemical resistance stand out immediately upon comparison. Fiberglass does not rust, oxidize, or corrode. It never requires secondary protective coatings like galvanization or specialized paints. You achieve predictable, maintenance-free longevity in harsh marine environments or highly caustic chemical processing facilities.
Thermal and electrical properties offer another distinct operational advantage. Fiberglass remains non-magnetic, non-sparking, and completely non-conductive. These inherent characteristics make it the default standard for specialized industrial applications. You will frequently find these profiles in electrical enclosures, sensitive antenna housings, and modern public transit infrastructure where electrical safety remains paramount.
However, engineers must evaluate fatigue and impact constraints objectively to avoid field failures. Fiberglass exhibits excellent elastic recovery under cyclic loading. It bounces back from repeated wind or vibration stress effectively. Yet, you must prepare for its distinct failure mode. Extreme blunt impact causes localized delamination in composites. This differs greatly from the predictable plastic deformation or denting seen in structural steel or aluminum. Knowing these boundaries ensures safer structural designs.
Material Comparison Matrix
Feature | Fibreglass Composites | Aluminum | Structural Steel |
|---|---|---|---|
Corrosion Resistance | Exceptional (Inherently resistant) | Moderate (Prone to galvanic corrosion) | Poor (Requires heavy galvanization) |
Electrical Conductivity | Non-conductive (Insulator) | High conductivity | High conductivity |
Failure Mode | Delamination / Fracturing | Plastic deformation / Denting | Yielding / Bending |
Specifying composite profiles requires precise material matching. You must align the structural makeup with actual field conditions. A generic approach often leads to premature environmental failure or excessive material costs.
Resin system selection forms the foundation of your specification. Frame your choice based strictly on operational environments:
Orthophthalic/Isophthalic Polyester: We consider this the most cost-effective baseline. It handles general-purpose structural support perfectly in standard atmospheric conditions.
Vinyl Ester: You must specify this matrix for highly corrosive environments. It also withstands elevated operating temperatures much better than standard polyester blends.
Epoxy: This resin provides the highest possible mechanical strength and thermal stability. Engineers typically reserve epoxy systems for aerospace applications or extreme high-performance requirements due to higher costs.
Glass reinforcement architecture also dictates physical performance. The pultrusion manufacturing process aligns glass fibers purposefully. Longitudinal rovings run the entire length of the profile. They provide massive tensile strength for long spans. Meanwhile, continuous strand mats wrap around the profile internally. These critical mats deliver transverse strength, helping the tube resist twisting forces and prevent longitudinal splitting under heavy loads.
Dimensional specs and wall thickness require careful calculation. You must assess nominal wall thickness relative to expected crush loads. Connection joints often present point-loading vulnerabilities. Specifying thicker walls at anticipated joint locations prevents mechanical failure during heavy assembly. Always consult span tables to confirm deflection limits before ordering.
Transitioning from metal to fiberglass introduces unique machining and assembly realities. Standard metalworking tools will degrade quickly and leave frayed composite edges. Cutting and drilling require specific tooling, primarily diamond-coated blades and specialized drill bits. You must also implement localized dust extraction systems. Proper ventilation protects fabrication workers from inhaling fine glass particulates.
Connection mechanics differ significantly from traditional metal joinery. Standard mechanical fasteners often crush hollow composites if overtightened. You must adapt your assembly approach to distribute clamping forces safely. We strongly recommend combining mechanical fastening with industrial structural adhesives. Alternatively, you can use specialized internal metallic inserts to reinforce the hollow profile against localized crushing forces.
Industry standards ensure material reliability across critical projects. You must verify manufacturer compliance rigorously before procurement. Request detailed ASTM testing data for tensile strength, flexural modulus, and compressive resistance. Demand adherence to ISO standard manufacturing tolerances. These certifications guarantee structural predictability and long-term safety.
UV degradation presents a well-known environmental challenge for exposed composites. Unpainted or uncoated fiberglass experiences "fiber bloom" under prolonged UV exposure. Sunlight degrades the surface resin slowly, exposing bare glass fibers to the elements. To mitigate this effectively, specify UV inhibitors directly within the resin matrix. You can also apply specialized polyurethane topcoats for maximum exterior protection over decades of use.
Financial evaluation in structural engineering extends far beyond the initial purchase price. Fiberglass may carry a slightly higher initial unit cost than bulk commodity steel. However, smart procurement teams evaluate long-term lifecycle ROI. The complete absence of galvanizing costs saves immediate finishing budgets. Minimal maintenance requirements drastically lower operational overhead over decades. You also benefit from significantly longer replacement cycles in highly corrosive environments, justifying the initial investment rapidly.
Supply chain predictability matters heavily when planning large-scale infrastructure projects. Standard pultruded profiles usually offer excellent availability and short factory lead times. If your project requires custom-tooled dimensions or specialized resin mixes, you must factor in extended manufacturing schedules and initial tooling fees.
Use this practical decision matrix to streamline your shortlisting logic:
Identify primary load requirements, including live loads, dead loads, and spanning distances.
Determine expected chemical exposure and map out thermal operating brackets.
Select the appropriate resin system based on environmental severity and budget constraints.
Define physical dimensions and calculate necessary wall thicknesses to prevent crushing.
Verify manufacturer testing data against local structural engineering codes and standards.
The transition to fibreglass hollow tubes involves much more than a simple material swap. It represents a highly strategic engineering decision. By specifying advanced composites, you actively engineer out systemic corrosion, eliminate dangerous electrical conductivity, and strip away unnecessary foundation weight.
Focus on aligning your resin choice and internal glass architecture precisely with field conditions. Prepare your fabrication teams for proper composite machining techniques and safe joint reinforcement strategies to prevent point-load failures.
As your actionable next step, consult directly with a reputable pultrusion manufacturer. Review their specific span tables and proprietary load testing data. Analyze your environmental variables thoroughly with their engineering team before finalizing procurement. This collaborative approach ensures maximum structural integrity and long-term lifecycle value for your project.
A: Fiberglass provides immense weight advantages based on its low specific gravity. A standard composite profile is typically 75% lighter than structural steel of the same volume. When compared to aluminum, fiberglass is roughly 30% lighter. This massive weight reduction simplifies logistics, reduces structural dead load, and frequently eliminates the need for heavy lifting cranes on-site.
A: We strongly advise against direct threading. Fiberglass is a highly anisotropic composite material. Cutting internal threads severs the continuous glass strands, drastically reducing structural integrity and pull-out strength. Instead of tapping the tube directly, you should use bonded metallic inserts or specialized composite structural adhesives designed to distribute connection loads evenly.
A: Structural integrity depends entirely on the selected resin matrix. Standard orthophthalic or isophthalic polyester resins generally cap operational brackets around 150°F to 180°F. If your application exceeds these temperatures, you must upgrade to vinyl ester or high-temperature epoxy resins. These advanced formulations can maintain mechanical properties well above 200°F.
A: Your choice depends entirely on the structural application and fabrication complexity. Round tubes provide excellent multi-directional aerodynamics and aesthetic appeal, making them ideal for handrails or antenna masts. Square tubes offer continuous flat surfaces. This geometry makes them significantly easier to join, assemble, and distribute loads across flat structural supports.
