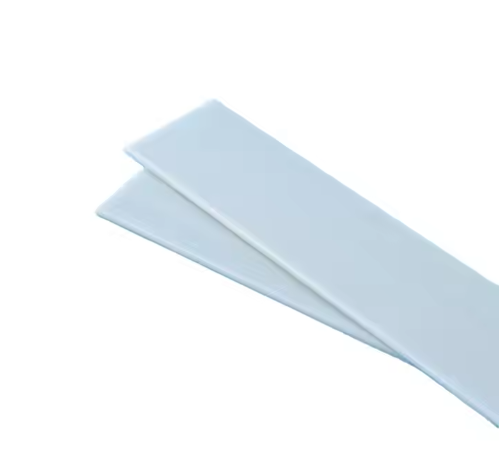

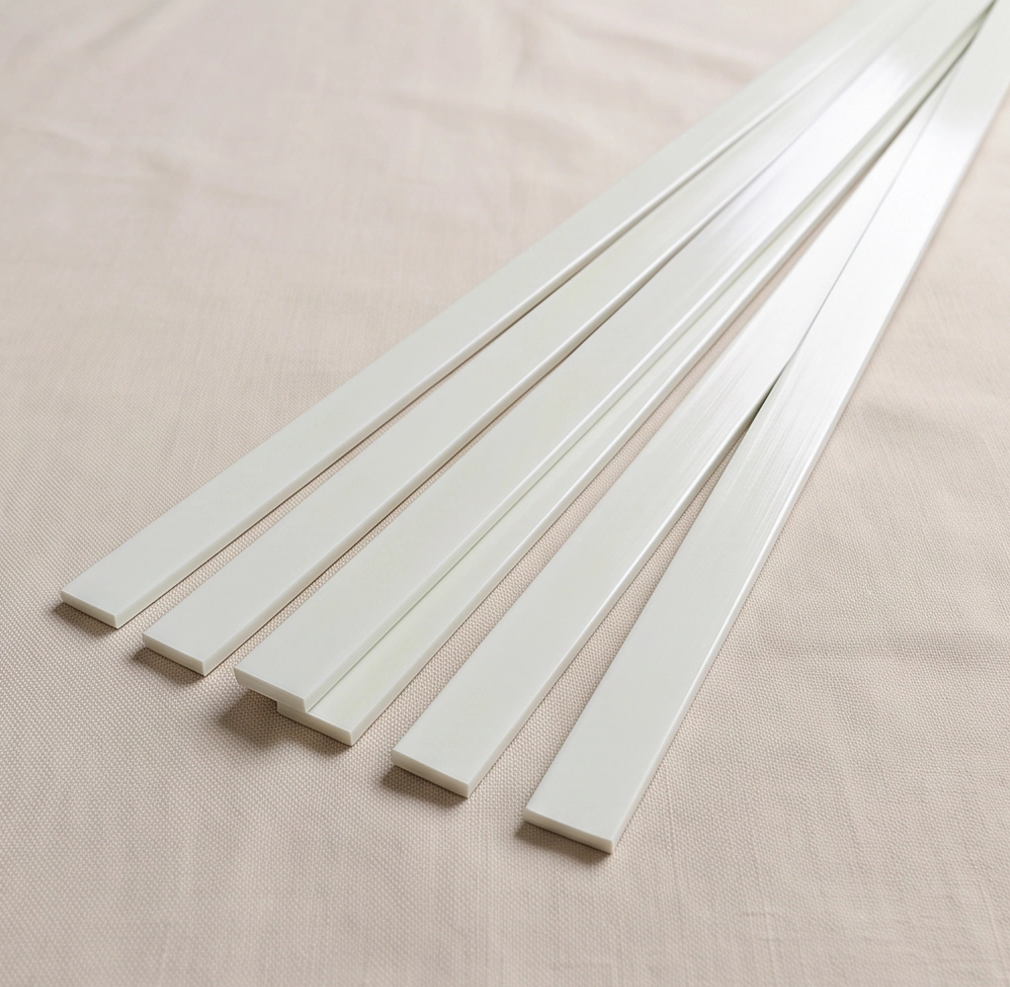

How to Select the Right Fiberglass Flat Bar Size for Custom Pultrusion Projects?

Transitioning from traditional materials like steel or aluminum to FRP (Fiberglass Reinforced Polymer) requires a fundamental shift in engineering logic. You cannot simply swap metals for composites on a one-to-one basis. Because pultruded composites are anisotropic—meaning their strength is directionally dependent—specifying the correct size for structural components is complex. Getting the dimensions wrong leads to dangerous structural failures or wasted raw material costs. Over-engineering adds unnecessary weight to the assembly. Under-engineering invites catastrophic breakdowns under dynamic loads. This guide breaks down the critical load requirements, environmental factors, and tooling economics necessary to evaluate your options. You will learn how to specify the exact profile dimensions for your custom project. We explore how to ensure structural integrity while optimizing your material budget effectively. We will also clarify when off-the-shelf profiles work best and when bespoke manufacturing logic makes long-term financial sense.

Key Takeaways

• Anisotropic Behavior dictates size: Sizing must account for unidirectional strength; thickness and width directly influence flexural limits and fastener pull-out resistance.

• Resin dictates volume: Environmental factors (corrosion, heat) require specific resin matrices, which can alter the necessary minimum thickness of the profile.

• Tooling ROI: Standard sizes offer faster lead times, but custom fiberglass pultrusion becomes cost-effective when specific dimensional tolerances reduce secondary machining at high volumes.

• Connection points dictate thickness: The most common point of failure is at joints; sizing must accommodate the required fastening method (adhesives vs. mechanical bolting).

The Engineering and Cost Implications of Sizing Fiberglass Flat Bars

The business problem surrounding material specification is straightforward but highly impactful. Oversizing your profiles leads to unnecessary raw material costs. It also adds unwanted weight to your structural assembly. This extra weight negates the primary benefits of using FRP in the first place. You want the material to be lightweight and easy to install. On the other hand, undersizing carries severe mechanical risks. You invite catastrophic structural failure under dynamic loads if the cross-sectional area remains too small.

You must acknowledge the anisotropic nature of a fiberglass flat bar. Unlike isotropic metals, composites behave differently depending on the direction of applied forces. Steel offers uniform strength in all directions. Composites do not. Longitudinal strength runs along the continuous glass rovings pulled through the die. This longitudinal strength vastly exceeds transverse strength. The transverse strength relies more on the continuous filament mat and the resin itself. If you apply lateral loads without sufficient material thickness, the profile might shear or delaminate.

A successfully specified profile balances multiple competing factors. You need the minimum viable cross-sectional area to keep material costs down. You also need an adequate structural safety factor required by strict industry compliance frameworks, like ASTM guidelines. Achieving this delicate balance defines your ultimate success criteria. You protect the project budget while guaranteeing long-term mechanical safety for the end-user.

Core Evaluation Dimensions: Calculating Structural and Load Requirements

We must evaluate continuous versus simply supported spans carefully. A simply supported beam rests freely on two supports. A continuous beam crosses multiple supports along its length. These configurations radically change how loads distribute across your profile. You must determine acceptable deflection ratios based on specific dimensional constraints. Engineers often target L/180 or L/240 deflection limits for structural applications. For example, an L/180 limit on a 120-inch span allows a maximum deflection of 0.66 inches. Your chosen fiberglass flat bars must have the correct thickness and width to stay rigidly within these parameters.

Next, assess your tensile versus flexural strength needs accurately. Load application thoroughly dictates your required cross-sectional area. Consider how specific forces act upon the bar in real-world scenarios:

1. Compression: Pushing forces require sufficient thickness to prevent premature buckling under heavy weight.

2. Tension: Pulling forces rely heavily on the continuous glass rovings running lengthwise down the profile.

3. Bending: Flexural loads demand an optimal width-to-thickness ratio to resist downward deflection efficiently.

Connection and fastening allowances play a massive role in proper sizing. You must factor in precise bolt-hole edge distances. Mechanical fasteners require a specific minimum thickness to prevent shear pull-out. When a bolt experiences high shear force, a thin composite edge will simply tear away.

• Common Mistake: Do not drill holes near the extreme edge of thin structural profiles.

• Best Practice: Leave a safe edge distance of at least three times the standard fastener diameter.

If you use heavy bolts instead of industrial adhesives, the material needs extra bulk directly around the joint. You must size the width and thickness accordingly to handle localized stress concentrations effectively.

Aligning Size with Resin Systems and Environmental Realities

Selecting the right resin matrix deeply impacts your overall structural properties. This crucial choice directly influences your required final dimensions. Polyester, Vinyl Ester, and Epoxy resins handle mechanical stress and harsh chemicals quite differently.

Corrosion and wear allowances also demand your strict attention. In highly corrosive environments like wastewater plants, structural degradation over time is a harsh reality. Chemical exposure slowly eats away at the exterior resin matrix. To counter this damage, engineers add fractional thickness to the base profile. These sacrificial layers or synthetic surface veils maintain structural integrity over a 20-year lifecycle. You essentially design the bar slightly oversized initially. It remains strong enough even after decades of continuous surface wear.

Thermal expansion is another highly critical variable. FRP naturally has a generally low coefficient of thermal expansion (CTE). However, you must still account for thermal cycling in tightly constrained mechanical assemblies. Extreme seasonal temperature swings cause slight expansion and contraction. If you size components too tightly within rigid steel frames, you risk major warping or buckling over the years.

Standard Profiles vs. Custom Fiberglass Pultrusion: Analyzing the ROI

Procurement teams must eventually choose between off-the-shelf profiles and bespoke manufacturing runs. The off-the-shelf approach works exceptionally well for rapid prototyping or low-volume construction runs. You intentionally design your project around readily available standard tooling sizes. This pragmatic strategy completely avoids upfront die manufacturing costs. It also significantly reduces standard material lead times.

However, you should evaluate the financial break-even point for custom tooling setups. Opting for custom fiberglass pultrusion becomes highly cost-effective under very specific production conditions. You justify custom sizes when non-standard dimensions completely eliminate costly secondary machining steps. A bespoke profile might also incorporate a specialized glass-to-resin ratio explicitly designed for unique payload forces.

Consider how custom die costs actively impact per-foot pricing based on Minimum Order Quantities (MOQs). We can map out a typical tooling amortization scenario to clarify the financial logic:

When you buy materials in massive volumes, the initial die cost spreads out very thinly. The labor savings gained by eliminating extra cutting and routing usually outweigh the initial tooling investment. Transparent logic dictates your final procurement decision here.

Implementation Realities and Sizing Risks to Avoid

Machining tolerances are a stubborn practical reality of the pultrusion manufacturing process. Standard pultrusion dimensional tolerances usually sit between +/- .010 inches and +/- .015 inches. If your complex assembly strictly requires tighter tolerances, you will face slower manufacturing line speeds. Tighter tolerances also inherently increase your final production costs. You must proactively design your structural joints to accommodate standard dimensional variances whenever possible.

Cutting and splintering risks pose another major operational challenge. Specifying an overly thin bar looks highly efficient on a CAD drawing. Yet, it can lead to severe delamination during routine on-site cutting or drilling. A dull drill bit violently tears out the internal glass fibers. This micro-fracturing compromises the entire localized structural area.

• Avoid specifying profiles thinner than 1/8-inch if heavy mechanical fastening is strictly required.

• Always use sharp, carbide-tipped cutting tools to minimize dangerous edge splintering on-site.

• Seriously consider industrial adhesive bonding to preserve the structural cross-section entirely intact.

Your shortlisting logic and next steps should be highly methodical. First, rigorously document your required maximum load, span distance, and environmental exposure limits. Second, firmly outline your preferred field connection methods. Finally, provide these exact technical parameters to an experienced pultrusion engineering team. They can confidently run preliminary structural calculations. You absolutely want expert engineering validation before you finalize any custom die size.

Selecting the right size for a fiberglass flat bar remains a precise engineering decision. This single dimensional choice directly impacts overall project safety, structural longevity, and your procurement budget. By rigorously evaluating load limits, connection methods, and environmental exposures upfront, procurement and engineering teams can confidently decide between standard profiles and bespoke manufacturing logic.

Follow these highly actionable next steps for your upcoming project:

1. Define your maximum possible load cases and acceptable structural deflection ratios immediately.

2. Audit your fastening strategy; ensure all joint areas possess sufficient material thickness to completely prevent shear pull-out.

3. Thoroughly assess environmental threats, like harsh chemicals or extreme heat, to select the correct protective resin matrix.

4. Engage directly with a qualified pultrusion manufacturer early in the design phase to review structural calculations.

FAQ

Q: What are the standard dimensional tolerances for pultruded fiberglass flat bars?

A: Typically, tolerances for width and thickness fall within ±0.010” to ±0.015”, depending on the overall size. Tighter tolerances can be achieved in custom pultrusion but may increase tooling and production costs.

Q: How does the sizing of a fiberglass flat bar affect its minimum order quantity (MOQ)?

A: Standard sizes often have lower MOQs as the dies are already active. Custom sizes require bespoke tooling, meaning manufacturers will set higher MOQs (e.g., 5,000 to 10,000 linear feet) to amortize the setup and die manufacturing costs.

Q: Can I drill holes into any size fiberglass flat bar?

A: No. Thin flat bars (e.g., under 1/8" or 3mm) are highly susceptible to delamination and tear-out when drilled. If mechanical fastening is required, a thicker profile must be specified to provide adequate shear strength around the fastener.

Q: Is it better to use a thicker standard flat bar or invest in a custom thinner profile with specialized resin?

A: It depends on the total volume. For small runs, a thicker standard bar is more cost-effective. For high-volume production, investing in a custom die for a lighter, thinner profile using high-strength directional rovings will yield a better long-term ROI on material costs.
