Whether you are an engineer prototyping custom structural components or a hobbyist building specialized parts for rocketry and marine applications, understanding composite fabrication is essential. You need materials balancing extreme strength and low weight. The fundamental engineering challenge goes far beyond simply shaping material around a cylindrical core. Creating a reliable structure requires precise control over fiber orientation, resin saturation, and curing environments. You must align these variables to achieve true structural integrity. A simple miscalculation easily ruins expensive materials and causes catastrophic part failure.
This article outlines the step-by-step mechanics of manual fabrication for your custom benchtop builds. We will also evaluate commercial manufacturing methods for scalability, environmental compliance, and consistent tolerances. You will learn exactly how to transition from making one-off prototypes to specifying full-scale production runs.
Manual roll wrapping is viable for one-off prototypes but carries high risks of resin voids, mandrel binding, and inconsistent wall thickness.
Commercial fiberglass tube manufacturing relies on automated processes—primarily pultrusion and filament winding—to dictate precise axial and hoop strength.
Material selection (epoxy vs. polyester resins, woven vs. unidirectional fabrics) must align with the specific load, environmental, and thermal requirements of the final application.
Scaling from prototype to production requires factoring in tooling costs, environmental compliance (VOC management), and rigorous quality control (QC) standards.
Tubes typically fail when the manufacturing process does not align with the intended load path. Understanding the core composite components prevents costly prototype failures. When engineering a Fiberglass Tube, you must treat the material as an integrated system. The system combines two distinct elements: the matrix and the reinforcement.
A composite structure relies on teamwork. The resin acts as the matrix. The glass fiber acts as the reinforcement. Each plays a critical role in surviving physical stress.
Component | Primary Material | Engineering Role |
|---|---|---|
Matrix | Epoxy, Polyester, Vinyl Ester | Transfers load between fibers. Protects fibers from abrasion and moisture. Keeps the shape intact. |
Reinforcement | E-Glass, S-Glass | Bears the actual tensile and compressive stress. Provides the primary structural strength. |
You cannot place fibers randomly and expect high performance. The direction of the fibers dictates the strength profile. Engineers specify precise angles based on anticipated loads.
Unidirectional (0°): Fibers run lengthwise down the tube. This maximizes axial stiffness. It resists bending forces perfectly.
Off-axis/Helical (±45° to ±90°): Fibers wrap around the circumference. This maximizes hoop strength. It provides massive crush resistance and handles internal pressure.
Success hinges on achieving the optimal fiber-to-resin volume ratio. You want enough resin to bind the fibers but not so much that you add useless weight. Commercial applications typically target a 60/40 or 70/30 fiber-to-resin ratio. This balance minimizes weight while maximizing overall strength. Dry spots occur if you use too little resin. Brittle, heavy parts result if you use too much.
Engineers and hobbyists frequently turn to manual roll wrapping. It is best for low-volume prototyping, R&D testing, or specialized custom repairs. Commercial minimum order quantities (MOQs) are often prohibitive for single units. Roll wrapping fills this gap perfectly.
Building a quality prototype requires strict procedural discipline. Follow these steps to ensure a usable final product.
Mandrel Preparation: Select the right core material. Aluminum and PVC are common choices. You must apply specialized release agents to prevent binding. Use PVA (Polyvinyl Alcohol) or specialized mold-release waxes.
Material Prep: Pre-cut your fiberglass cloth. E-glass is standard for general use. Mix the resin with precise hardener ratios. You must control the exothermic curing reaction. Too much hardener causes the resin to boil and ruin the part.
Wrapping: Apply the fabric to the mandrel. Maintain high tension during the wet lay-up. Alternatively, use pre-preg materials for cleaner handling. Next, focus on compaction. Wrap the wet lay-up tightly using heat-shrink tape. This consolidates the layers and forces out trapped air.
Curing & Extraction: Manage your temperature profiles carefully. Follow the resin manufacturer guidelines. Once cured, use mechanical extraction methods carefully. You must remove the mandrel without damaging the inner diameter (ID).
Manual fabrication carries several significant risks. You face a high probability of delamination between layers. Trapped air voids weaken the wall structure. Hand wrapping often leads to uneven wall thickness. Furthermore, improper waxing can cause parts to permanently bond to the mandrel. You must pay attention to every detail to avoid these outcomes.
When scaling beyond prototypes, manufacturers utilize automated systems. These systems ensure strict repeatability. They also significantly lower per-unit costs. Automated systems dominate commercial Fiberglass Tube Manufacturing. Two primary solution categories handle the bulk of industrial production.

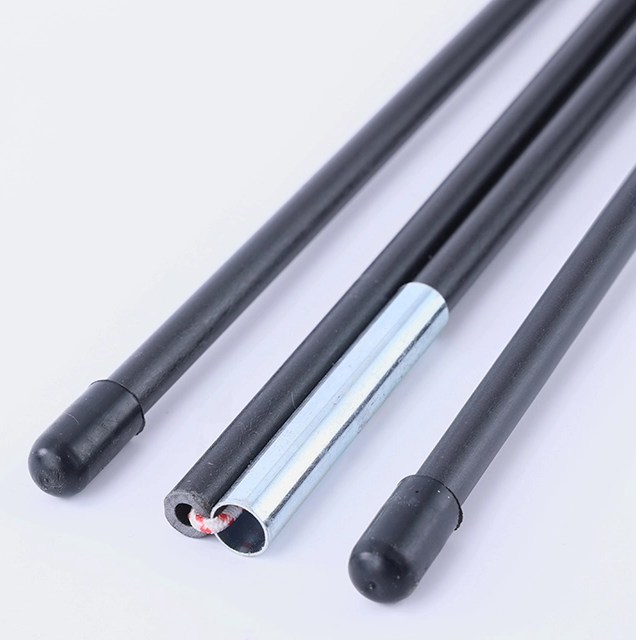

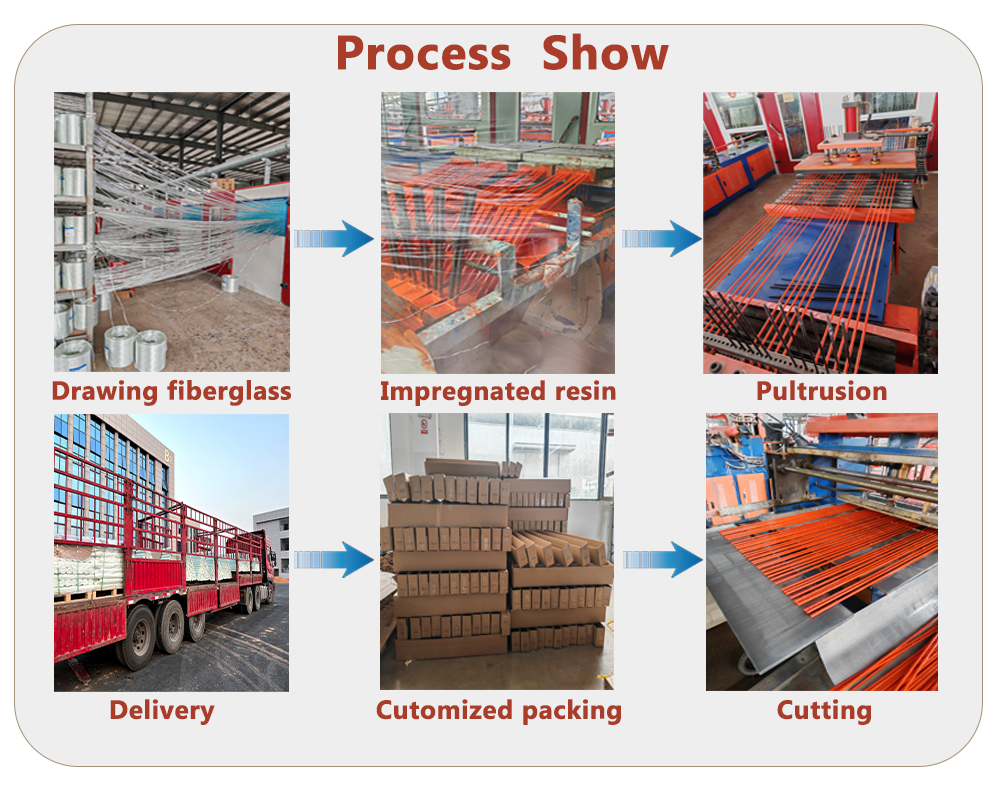

Pultrusion is a continuous, high-volume process. It relies on pulling rather than pushing.
How it works: Machines continuously pull fiberglass rovings through a wet resin bath. The saturated fibers then enter a heated forming die. The heat triggers instant curing.
Best for: High-volume, continuous-length tubes. Applications requiring superior longitudinal strength benefit greatly. Examples include tool handles, antenna housings, and structural grating.
Limitations: The process cannot easily produce tapered tubes. It inherently creates weaker hoop strength. You must combine rovings with specialized matting to improve crush resistance.
Filament winding offers extreme customization. It builds strength exactly where you need it most.
How it works: Machines feed continuous, resin-impregnated rovings onto a rotating mandrel. Computer-controlled arms dictate precise delivery angles.
Best for: Applications requiring extreme internal pressure resistance. Pressure vessels, aerospace components, and fluid transport lines use this method.
Advantages: You get highly customizable strength profiles. By adjusting the winding angles, you dictate the exact balance of axial and hoop strength.
Feature | Pultrusion | Filament Winding |
|---|---|---|
Primary Strength | Longitudinal (Axial) | Circumferential (Hoop) |
Production Speed | Very High | Moderate |
Geometry Limits | Constant cross-section only | Can handle tapers and complex curves |
Customization | Low fiber angle variation | Precise, multi-angle layering |
Commercial viability requires strict adherence to testing standards. You cannot rely on visual appearance alone. Environmental standards also play a massive role in modern manufacturing facilities.
Quality control teams use specific methods to identify hidden flaws. They look for dry spots, micro-cracking, and resin-rich areas.
Ultrasonic Testing: Uses high-frequency sound waves to find internal voids. It is entirely non-destructive.
Visual Inspection: Operators use intense backlighting to spot translucent irregularities in the resin matrix.
Burn-Off Tests: Technicians burn away the resin in a controlled furnace. They weigh the remaining glass to verify the exact fiber-to-resin ratio per ASTM standards.
Curing resin shrinks. Managing this shrinkage during the cure cycle is critical. Manufacturers must maintain precise Outside Diameter (OD) and Inside Diameter (ID) specifications. Automated processes control heat curves to minimize sudden dimensional shifts. Machining the final OD is sometimes necessary for high-tolerance fittings.
Handling raw composites presents health hazards. Facilities must navigate OSHA and EPA regulations. Volatile organic compounds (VOCs) emit off-gassing during the resin curing phase. You must use industrial ventilation systems to capture these fumes. Additionally, machining and sanding produce airborne fiberglass particulates. Strict dust mitigation protocols, including HEPA vacuums and specialized respirators, protect workers from respiratory damage.
Scaling production forces a major decision. Do you build the tubes yourself or hire a specialized facility? You need a clear decision framework for scaling production safely and efficiently.
In-house manufacturing demands significant capital expenditure. You must purchase custom mandrels for every unique ID. Automated winders and pultrusion dies cost tens of thousands of dollars. Industrial curing ovens require massive floor space and heavy electrical upgrades. Outsourcing shifts these infrastructure burdens entirely to the partner facility.
Composite engineering has a steep learning curve. Operators must understand temperature humidity indexes, resin viscosity, and fiber tensioning. Hiring experienced composite technicians is expensive. Outsourcing allows you to leverage an established manufacturer's R&D and QA teams immediately. You bypass months of costly trial and error.
Choosing a manufacturing partner requires specific criteria. Consider the following when evaluating suppliers:
Location: Domestic sourcing offers faster communication. International sourcing often provides better high-volume pricing.
Quality Standards: Look for ISO 9001 certifications. This guarantees documented, repeatable processes.
Material Capabilities: Ensure they handle your specific resins. Some applications demand vinyl ester for corrosion or high-temp epoxies for thermal stability.
Volume Limits: Verify their MOQ flexibility. Can they transition you from small pilot runs to mass production seamlessly?
Move your project from a CAD design to reality. First, finalize your structural requirements. Next, request a manufacturability assessment from your shortlisted vendors. Finally, submit an RFQ (Request for Quote) detailing your exact tolerances and load paths.
Making a custom tube manually remains a highly accessible process for initial prototyping. However, guaranteeing long-term structural reliability demands controlled, automated processes.
Transitioning from roll wrapping to pultrusion or filament winding fundamentally depends on your scale, budget, and performance needs.
Manual methods help validate early designs, but they struggle with void reduction and dimensional consistency.
Industrial manufacturing eliminates guesswork by tightly controlling heat profiles, fiber tension, and resin ratios.
Material selection dictates success. You must pair the right resin chemistry with the correct fiber orientation.
Do not let manufacturing limitations stall your product development. We encourage engineers and procurement managers to submit their tube specifications today. Send us your required ID, OD, and load requirements. We will provide a comprehensive commercial manufacturing evaluation and quote.
A: The best resin depends on your application. Epoxy provides the highest strength and lowest shrinkage, making it ideal for aerospace. Polyester is highly cost-effective and features a faster cure time for general consumer goods. Vinyl ester offers superior corrosion resistance, making it perfect for marine and chemical environments.
A: You must use high-quality mold release agents. Apply multiple coats of mold release wax followed by a PVA (Polyvinyl Alcohol) film. Alternatively, use specialized shrink-tape barriers. If your design permits, adding a slight draft (tapering) to the mandrel drastically improves mechanical extraction.
A: Carbon fiber offers a superior stiffness-to-weight ratio. It is significantly lighter and more rigid. Fiberglass, however, is much more cost-effective. It also provides better impact resistance and is RF transparent. This makes fiberglass the better choice for antenna housings and rugged, heavy-duty applications.
A: Yes, you can machine them. However, it requires specific techniques. You must use carbide or diamond-coated tooling. Standard steel bits dull instantly and cause the composite layers to fray or delaminate. You must also implement strict dust mitigation protocols to handle dangerous airborne particulates safely.
