Fiberglass Reinforced Plastic (FRP) offers a high-strength, corrosion-resistant alternative to traditional steel and wood. However, its complex composite structure makes it notoriously unforgiving during the fabrication process. Installers often face unexpected challenges when modifying these materials on site. Incorrect cutting and drilling lead to severe delamination, microscopic cracking, and severely compromised load-bearing capacity. These common mistakes easily turn a premium, high-performance material into a hidden structural liability.
This guide provides a standardized, evidence-based framework for correctly cutting, drilling, and handling these advanced composites. You will learn specific technical parameters to eliminate costly material waste. We prioritize OSHA-compliant safety practices to protect your workforce from hazardous dust. Finally, we outline proven methods to guarantee the structural integrity of your finished assembly.
Standard high-speed steel (HSS) tools degrade rapidly when fabricating FRP; carbide or diamond-tipped tooling is mandatory for project scalability.
Proper backing boards and precise feed rates are required to prevent exit-side splintering during drilling.
Installation requires a combination of mechanical fasteners (with specific torque limits) and structural adhesives to distribute load and prevent fiber crushing.
Field fabrication introduces hazardous dust and quality control risks; high-volume applications often justify sourcing pre-cut, factory-sealed materials.

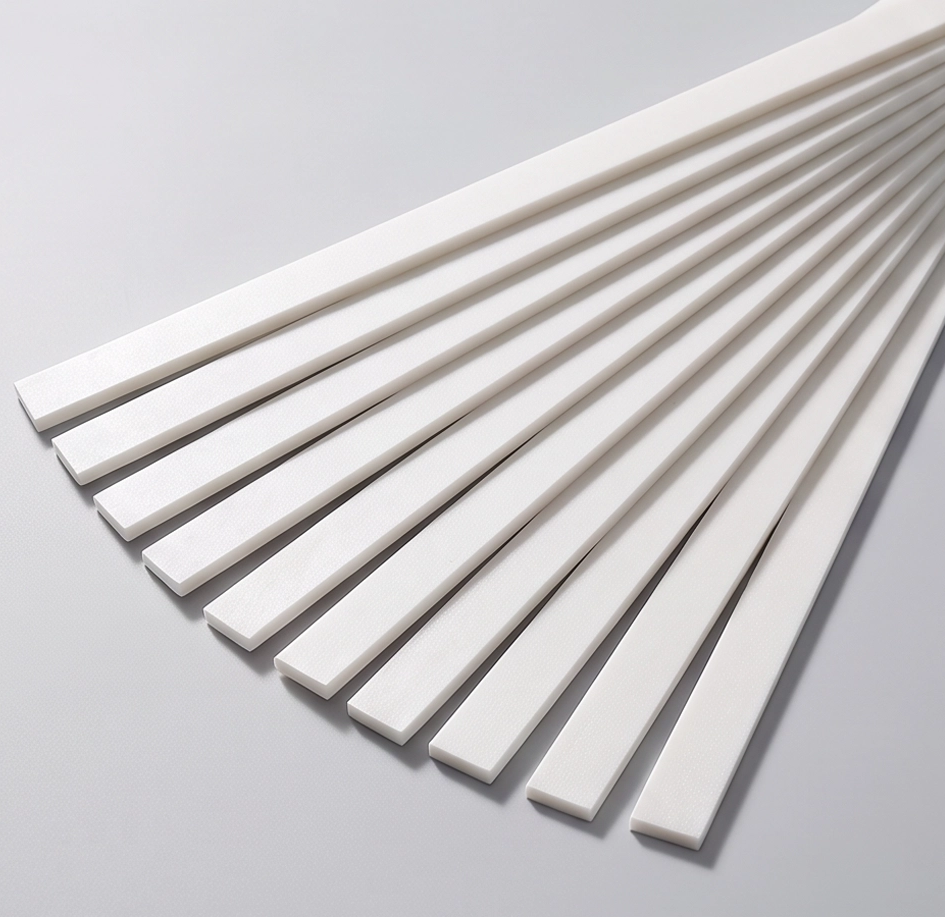

Working with composite materials requires a complete shift in fabrication mindset. A Fiberglass Flat Bar consists of highly abrasive glass fibers deeply embedded in a protective resin matrix. You cannot treat this composite like traditional carbon steel or timber. Unlike metals, fiberglass composites do not yield under pressure. They simply chip, splinter, or delaminate when subjected to improper localized stress.
Ignoring the unique properties of FRP materials leads to compounding project failures. These failures typically manifest in two distinct ways:
Tooling degradation: Glass fibers act as a highly effective abrasive. They rapidly destroy standard high-speed steel cutting edges. Dull blades create immense friction. This friction generates excess heat, melts the surrounding resin, and causes hidden micro-cracks along the cut line.
Structural failure: A frayed edge severely reduces the flexural strength of the material. A blown-out drill hole concentrates stress exactly where the structural load transfers. These localized weak points risk catastrophic failure under heavy industrial loads.
Cutting and drilling FRP generates microscopic glass dust. This fine particulate matter poses severe respiratory and skin irritation risks. Standardizing your fabrication process requires strict adherence to workplace safety regulations. You must implement mandatory Personal Protective Equipment (PPE) protocols. Workers need N95 or P100 respirators, tightly sealed safety goggles, and full-coverage protective suits. Active dust extraction systems running at the tool source remain essential to meet OSHA compliance standards.
Many contractors mistakenly assume standard construction site ventilation suffices. Passive ventilation never adequately captures airborne glass fibers. You must capture dust directly at the cutting blade to maintain a safe environment.
Clean cuts require specialized blades and disciplined execution. Selecting the wrong blade ruins the material before you even finish the first pass.
You must match your cutting tool to the specific volume and precision requirements of your project. We have summarized the most effective tooling options below.
Tool Type | Best Use Case | Required Blade Specification |
|---|---|---|
Circular Saws / Grinders | Straight cuts, field trimming | Continuous rim diamond blade or fine-tooth carbide-tipped blade (masonry/non-ferrous). |
Bandsaws | Bulk cutting, repetitive processing | Fine-tooth, carbide-grit blade. Must operate at moderate speeds. |
Jigsaws | Short custom notches, intricate shapes | Carbide-grit jigsaw blades. Run at low stroke speeds to prevent heat buildup. |
Even the best diamond blade causes splintering if you use improper techniques. Follow these exact steps to achieve a factory-clean edge.
Surface Preparation: Never cut raw fiberglass directly. Wrap the intended cut line tightly with heavy-duty masking tape. The tape physically binds the fragile surface fibers. It effectively prevents the outer layers from fraying as the blade teeth exit the material.
Feed Rate and RPM Management: You must maintain a high blade RPM but use a notably slow, consistent feed rate. Let the abrasive edge do the work. Forcing the blade through the material causes immediate heat buildup. This heat melts the structural resin and leaves a scorched, weakened edge.
Post-Cut Edge Sealing: All raw cut edges expose tiny glass capillaries to the environment. Moisture and harsh chemicals wick into these open fibers over time. You must sand the newly cut edges smooth. Finally, seal them completely using a compatible polyurethane or two-part epoxy resin. This step guarantees long-term environmental resistance.
Creating holes in FRP materials requires an entirely different approach than drilling steel. The goal is to cleanly shear the glass fibers without pushing them apart.
Standard twist drills feature a wide point angle designed for metal. These bits push fibers apart and cause severe delamination. You should completely avoid them. Instead, use carbide-tipped bits or sharp brad-point bits. For high-volume production, purchase specialized FRP drill bits featuring a 60-degree point angle. This aggressive angle cleanly slices through the glass strands before they can deflect.
You must never drill a composite bar in mid-air. As the drill bit breaks through the back surface, it violently pushes the final layer of fibers outward. This blowout ruins the structural integrity around the hole. Always clamp a sacrificial backing board tightly against the exit side. Scrap wood or Medium-Density Fiberboard (MDF) works perfectly. The backing board provides opposing pressure. It holds the fibers flat while the cutting edge finishes the hole.
Operator technique plays a massive role in hole quality. Adhere to these specific operating parameters:
Apply low-to-medium pressure: Excessive downward force causes the internal layers to separate. Let the sharp bit do the cutting naturally.
Use hole saws for large diameters: For any holes larger than 1/2 inch, switch to a hole saw with a carbide grit edge. Large twist bits tend to grab the composite matrix, violently spinning the material or cracking the bar in half.
Implement clearance holes: Always drill clearance holes slightly larger than your intended fastener diameter. A 1/16-inch oversize allowance works best. This extra space accommodates natural thermal expansion and prevents the fastener from inducing stress fractures over time.
Proper fabrication means nothing if the final assembly fails under load. Fiberglass Flat Bar Installation requires precise load distribution. You must avoid point-loading the composite at all costs.
Bolting composites together demands specific hardware choices. Using incorrect fasteners nullifies the natural corrosion resistance of the FRP system.
Always utilize high-grade stainless steel fasteners. Type 316 or 304 stainless steel matches the exceptional corrosion resistance of the fiberglass. If stainless proves too costly, heavily galvanized hardware serves as a minimum acceptable alternative. Never use standard zinc-plated steel in outdoor or chemical environments.
A standard bolt head creates a massive stress concentration. You must use oversized, heavy-duty flat washers on both sides of the connection. Fender washers work exceptionally well. They distribute the heavy clamping force over a significantly wider surface area, preventing the bolt from pulling through the resin.
Installers often ruin good materials by overtightening bolts. Excessive torque crushes the delicate resin matrix. You will hear an audible cracking sound if you go too far. Tighten the nut only until snug. Once snug, use chemical thread-locking compounds to prevent the hardware from vibrating loose over time.
Mechanical fasteners alone sometimes create too much localized stress for heavily loaded structures. In these scenarios, you should combine mechanical bolting with structural adhesives. Marine-grade epoxies or heavy-duty polyurethane construction adhesives drastically improve the joint strength. They distribute the structural load evenly across the entire mating surface.
You cannot bond directly to a glossy factory finish. The mold-release agents left on the surface will cause immediate adhesive failure. You must lightly abrade the mating surfaces using medium-grit sandpaper. After sanding, thoroughly wipe the area clean with a fast-evaporating solvent like acetone. Apply your adhesive only after the solvent fully flashes off.
Project managers frequently debate whether to cut materials on the job site or order them pre-fabricated. Each approach carries distinct logistical benefits depending on the project scope.
Processing materials on-site makes sense for specific scenarios. Field fabrication works best for early-stage prototyping. It also fits perfectly for small-scale custom retrofits where existing structures lack precise blueprints. If you face unpredictable site conditions requiring constant on-the-fly measurements, bringing saws and drills to the site remains the most practical choice.
Scaling up changes the equation entirely. For high-volume projects or highly standardized installations, field cutting becomes a major bottleneck. You should partner with a specialized supplier who delivers CNC-cut, pre-drilled, and factory-sealed FRP components directly to the site.
Pre-fabrication eliminates costly on-site safety risks regarding glass dust. It guarantees exact dimensional tolerances. Most importantly, it drastically accelerates your installation timelines, allowing your crew to focus purely on assembly rather than manufacturing.
Evaluate your current operational readiness before starting a large composite project. Audit your team's tooling inventory to ensure you possess enough diamond blades and carbide bits. Review your respiratory safety protocols and dust extraction capabilities. If you lack the necessary infrastructure, immediately request quotes for pre-fabricated components from certified FRP manufacturers.
Successfully utilizing a fiberglass flat bar relies entirely on respecting the composite nature of the material. Treating it like steel or wood guarantees failure. Proper tooling, carefully controlled feed rates, and load-distributing installation methods make the ultimate difference. They elevate a simple installation into a lifetime structural component, rather than an expensive liability.
Do not compromise on your tooling choices. Invest heavily in carbide and diamond cutting assets. Establish strict dust management protocols before initiating any on-site fabrication. If your project demands high volumes, aggressively shift the fabrication burden to your supplier. Leveraging factory-precision cuts ensures safety, speeds up deployment, and protects your bottom line.
A: While a standard wood blade will physically cut FRP, it will dull rapidly. The dull teeth generate excessive friction and heat, causing severe splintering and resin melting. We highly recommend using continuous rim diamond blades or fine-tooth carbide-grit blades for clean, safe cuts.
A: Yes. If your installation environment involves harsh industrial chemicals, saltwater exposure, or extreme moisture, you must seal the holes. Coating the inside of the freshly drilled hole with a compatible polyurethane or epoxy resin prevents liquid from wicking into the fibers and causing long-term degradation.
A: It is generally not recommended to tap FRP directly. The cut threads will lack sufficient shear strength and strip out under moderate loads. Instead, you should use through-bolts paired with oversized washers and locking nuts. Alternatively, use specialized threaded metal inserts securely bonded into the composite with high-strength epoxy.
A: Always perform cutting tasks in a well-ventilated area. Connect a high-powered shop vacuum equipped with a HEPA filter directly to your tool's dust port. Operators must wear a proper particulate respirator (N95 minimum), sealed safety goggles, and long sleeves to prevent severe skin and respiratory irritation.
