Guide To Choosing Small-Diameter Fiberglass Rods for Roman Shade Liners

Guide to Choosing Small-Diameter Fiberglass Rods for Roman Shade Liners

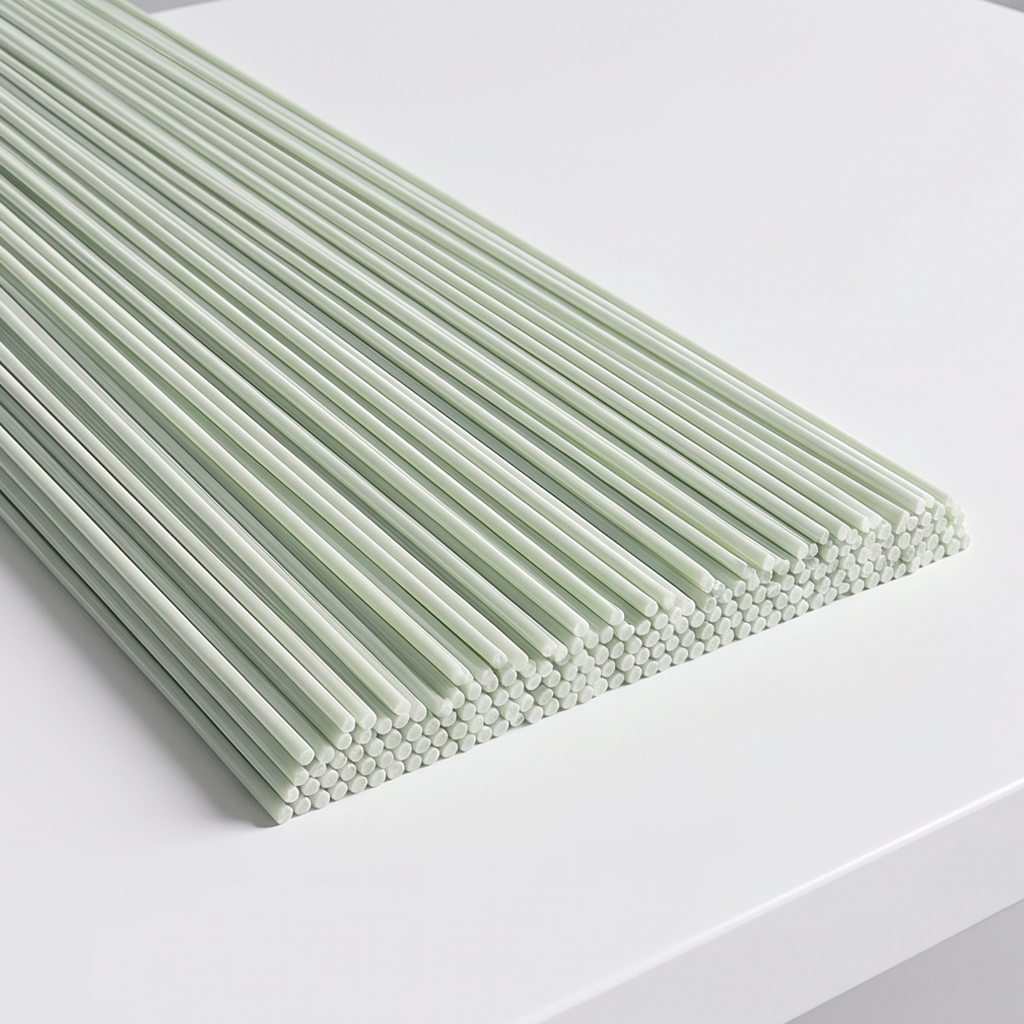

Available sizes: 2.0 / 2.5 / 3 / 3.5 / 4 mm

1. Window size & shape

Roman shades is most suitable tall, narrow windows.

2. Fabric weight

• Light fabric: Thin rods (2.0–3 mm) are enough.

• Heavy / blackout fabric: Pick thicker rods (3–4 mm) to hold folds straight.

Common length reference paired with diameter:

2.0 mm: ≤ 60 cm (very narrow small windows, sheer light fabric)

2.5 mm: 40–80 cm (narrow windows, sheer / light linen)

3.0 mm: 60–110 cm (most common household width, light‑medium fabric)

3.5 mm: 90–140 cm (medium-wide windows, medium-weight fabric)

4.0 mm: 120–170 cm (wide windows, thick blackout fabric)

3. Budget & look consistency

Balance your budget with the final appearance. Choose the minimum diameter needed for clean folds. Over-sized rods add cost and extra weight.

4. Custom dimensions (diameter + length)

Use the reference table above as a starting point, then adjust by your actual finished shade width and fabric.

Too thin for the width → middle sags, crooked folds.

Rod too long → catches sides when lifting.

5. Shade operation type (add, matches our earlier content)

Manual: Consider the support effect of rods, follow the width-diameter guide

Semi-auto self-lowering: Keep rod weight consistent

Motorized: Use the lightest rod to reduce motor load

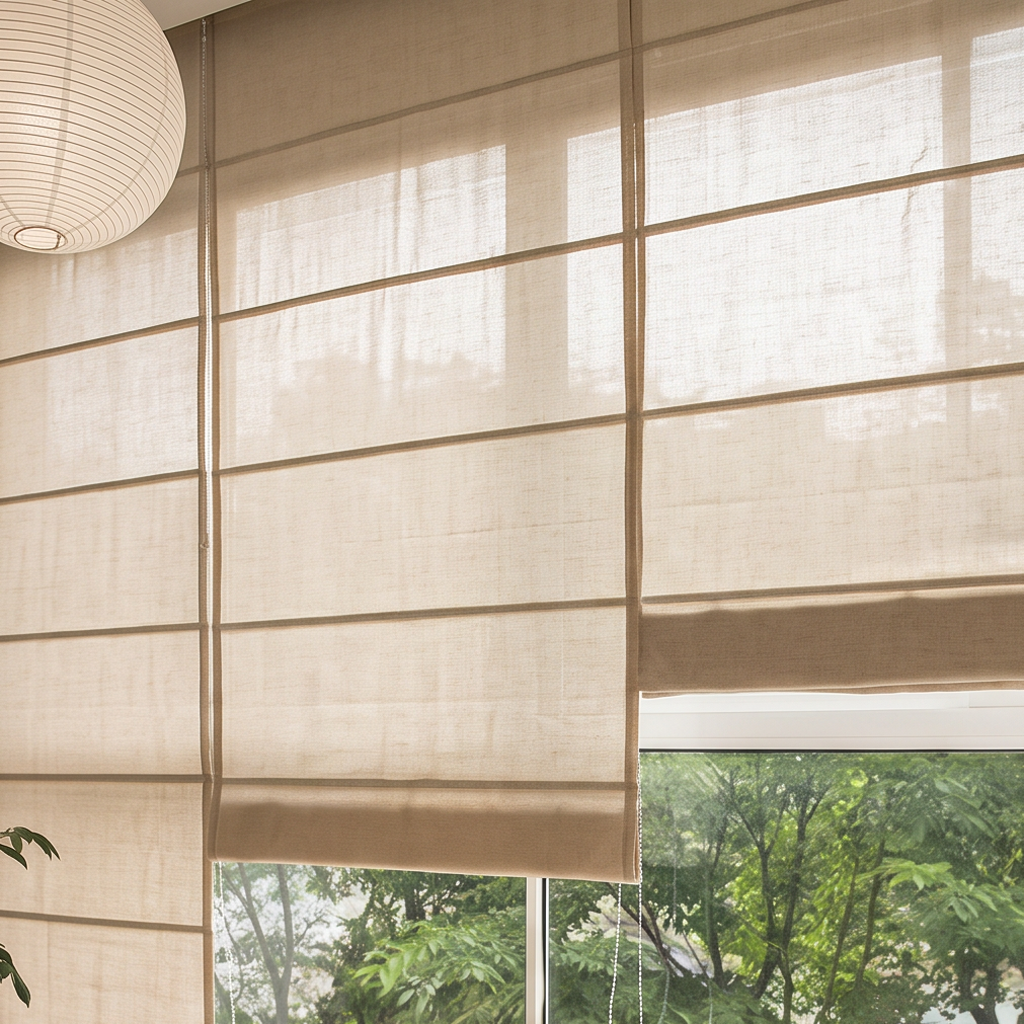

6. Shade style

Folding Roman: One rod per fold pocket

Fan / wave style: Only a few support rods, mostly bottom weighted rod to keep edge from curling

Quick note: Fabric width must fit the rod diameter.
