Fiberglass rods are incredibly strong, lightweight, and versatile materials that are used in a variety of applications, from construction and engineering to sports and recreation. They are made by combining glass fibers with resin, creating a material that is both durable and flexible under certain conditions. One of the most common techniques to shape fiberglass rods is heat molding. In this article, we will explore whether it is possible to heat mold fiberglass rods, the methods to do so, the benefits, the challenges you might face, and tips for success. By the end, you will have a clear understanding of how to heat mold fiberglass rods effectively.

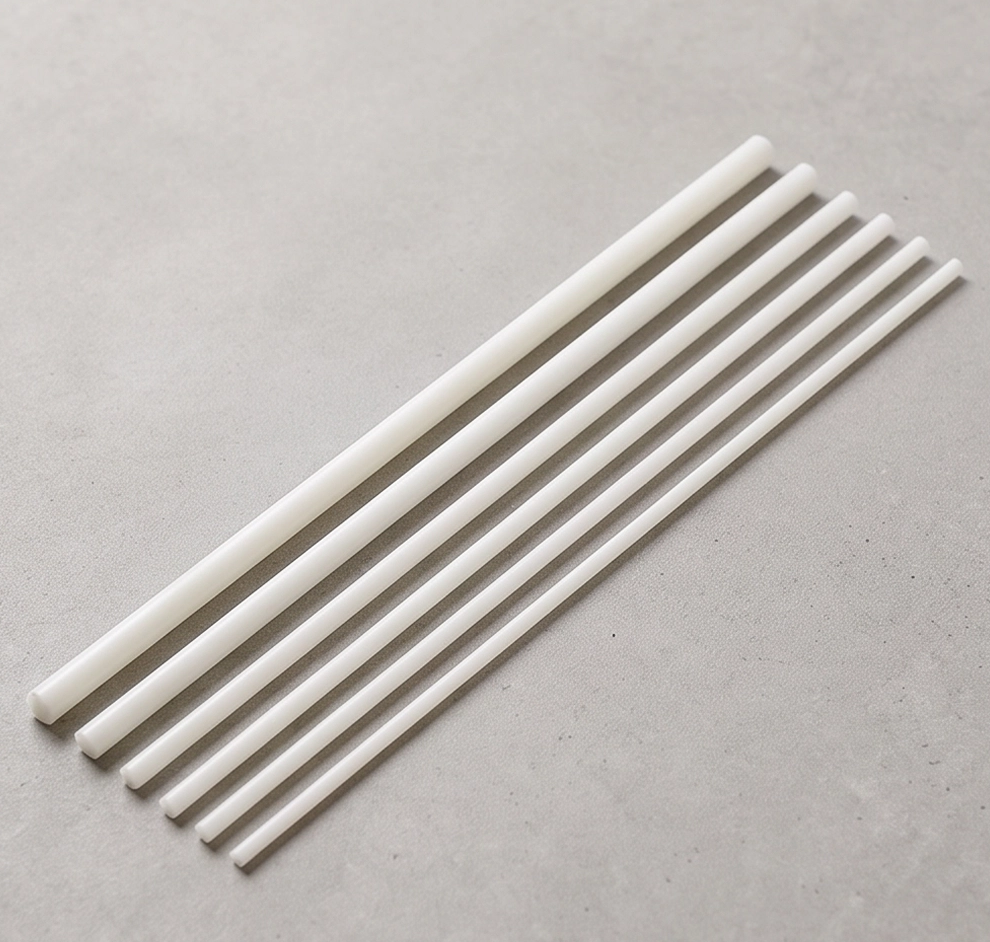

Fiberglass rods are solid, cylindrical structures made from woven or randomly oriented glass fibers that are impregnated with resin. The fibers provide strength and flexibility, while the resin helps hold them together. These rods are widely used in various fields due to their high strength-to-weight ratio, corrosion resistance, and versatility. They are commonly used in applications such as:
Fishing rods: Lightweight, strong, and flexible, ideal for long casting distances.
Tent poles: Durable and weather-resistant, perfect for outdoor camping gear.
Flagpoles: Corrosion-resistant and lightweight for outdoor use.
Reinforcement and structural supports: Used in construction and engineering for added durability without adding excess weight.
Electrical insulation: Fiberglass rods are also used as insulators in high-voltage applications.
Due to their strong and rigid nature, fiberglass rods can be challenging to shape. However, with the right technique—such as heat molding—they can be molded into different shapes and sizes for specific applications.
Yes, fiberglass rods can be heat molded, but there are specific conditions and techniques that need to be followed to ensure success. The key to heat molding fiberglass is applying heat in a controlled manner to soften the resin, which allows the fiberglass fibers to flex without breaking. Once the resin cools and solidifies, the fiberglass rod retains its new shape.
Heat molding fiberglass rods can be incredibly useful for various reasons, including:
Customization: Many applications require fiberglass rods to be bent or shaped to specific angles or curves. Heat molding allows you to achieve these custom shapes.
Cost-effectiveness: Rather than purchasing pre-molded fiberglass rods in specific shapes, heat molding allows you to adjust the rod to the exact specifications required for your project.
Repair or Modification: If a fiberglass rod has been damaged or needs to be altered, heat molding offers an easy way to modify its shape.
Aesthetic Design: In artistic applications, heat molding enables the creation of intricate designs and sculptures from fiberglass rods.
The process of heat molding fiberglass involves heating the fiberglass rod to a point where the resin becomes soft and pliable, allowing the fiberglass to be bent or molded into a new shape. This method is commonly used for creating custom shapes, bends, and curves in fiberglass rods for various applications. Here is an overview of how the heat molding process works:
Heating: Fiberglass rods need to be heated to a specific temperature to soften the resin without damaging the material. The resin in the fiberglass softens at temperatures between 250-350°F (120-175°C), depending on the type of resin used. The exact temperature required will depend on the type of fiberglass and resin you are working with.
Bending or Molding: Once the fiberglass is heated to the appropriate temperature, it becomes flexible. At this point, it can be bent into the desired shape using hand pressure, a bending jig, or a mold. The flexibility of the fiberglass rod during this stage allows it to be shaped without breaking or cracking.
Cooling and Solidifying: After the fiberglass has been molded into the desired shape, it needs to cool down. As it cools, the resin hardens, and the fiberglass rod retains its new shape. The cooling process is just as important as the heating process because it solidifies the resin and ensures the structural integrity of the mold.
There are a few different methods for heat molding fiberglass rods, depending on the complexity of the shape you want to achieve and the tools available. Let’s break down the most common techniques:
A heat gun is one of the most commonly used tools for heat molding fiberglass rods. It allows for targeted, precise heating and is ideal for small to medium-sized bends and curves.
Step-by-Step Process Using a Heat Gun:
Measure and Mark: Measure the section of the fiberglass rod that needs to be bent and mark it clearly.
Prepare the Heat Gun: Set your heat gun to a moderate setting, usually between 250°F and 350°F (120°C to 175°C), and make sure it is in good working condition.
Heat the Fiberglass Rod: Hold the heat gun a few inches away from the marked section of the rod. Move the gun slowly back and forth along the length of the rod to evenly heat the material. Continue heating until the rod becomes soft and flexible.
Bend the Rod: Once the fiberglass is heated, gently bend it to the desired angle. You can use a bending jig or do this by hand, depending on the angle and complexity of the bend.
Cool the Rod: After bending, allow the rod to cool naturally or use a fan to speed up the process. Do not disturb the rod while it is cooling, as this could cause the shape to shift.
For larger fiberglass rods or more complex molds, using an oven can be an effective method to apply consistent heat.
Step-by-Step Process Using an Oven:
Prepare the Oven: Preheat your oven to a temperature between 250°F and 350°F (120°C to 175°C), depending on the type of resin used in your fiberglass rod.
Place the Fiberglass Rod in the Oven: Put the fiberglass rod on a heat-resistant surface and place it in the oven. Ensure that the rod is not in direct contact with any metal parts of the oven.
Monitor the Rod: Leave the rod in the oven for 10-20 minutes, checking periodically to make sure it is evenly heated. The resin should soften but not burn.
Bend the Rod: Once the rod is flexible, carefully remove it from the oven and immediately mold it into the desired shape using a jig or by hand.
Cool and Set: Allow the fiberglass rod to cool in its new shape. You can place it in a cool area or use a fan to speed up the process.
For smaller projects or quick bends, boiling water can also be an effective way to heat mold fiberglass rods. This method is best suited for thin rods or small-scale projects.
Step-by-Step Process Using Boiling Water:
Boil Water: Bring a pot of water to a boil.
Submerge the Fiberglass Rod: Immerse the section of the fiberglass rod you want to bend into the boiling water. Make sure the rod is fully submerged for even heating.
Wait for Softening: Let the rod soak in the boiling water for 5-10 minutes, or until it becomes flexible.
Bend the Rod: Remove the fiberglass rod from the water and quickly bend it to the desired shape using a bending jig or by hand.
Cool the Rod: Allow the rod to cool naturally in its new shape.
Heat molding fiberglass rods offers several advantages over other methods of shaping and modifying the material:
Customization: Heat molding allows you to create custom shapes, bends, and angles that fit your specific needs.
Cost-Efficient: Rather than buying pre-molded fiberglass rods, you can create the desired shape yourself, saving money on custom materials.
Repair and Modification: Heat molding makes it easy to repair or modify existing fiberglass rods that are no longer the right shape or size.
Versatility: This method can be used for a wide range of applications, from industrial uses to artistic creations.
While heat molding fiberglass rods is an effective technique, there are some challenges and precautions to keep in mind:
Risk of Overheating: Overheating fiberglass can damage the resin and weaken the structure of the rod. Always monitor the temperature carefully to avoid overheating.
Brittleness: Fiberglass rods can become brittle if they are exposed to excessive heat or if they are bent too sharply. Always use gradual, even pressure when bending.
Inconsistent Heating: Uneven heating can lead to cracks, warping, or inconsistent bends. Make sure to heat the fiberglass rod evenly for the best results.
Safety: Always wear gloves, safety glasses, and a mask to protect yourself from fiberglass dust and the heat during the molding process.
Heat molding fiberglass rods is an effective and practical technique for creating custom shapes, modifying rods, or repairing damaged ones. Whether you’re working on a DIY project, industrial application, or artistic design, heat molding allows you to mold fiberglass rods into precisely the shapes you need. The key to success lies in using the right tools, maintaining proper temperature control, and applying gentle pressure when bending. With these tips and techniques, you can confidently heat mold fiberglass rods for a variety of applications.
